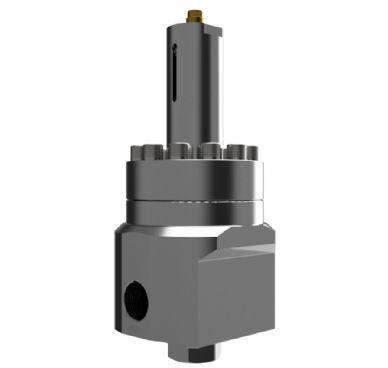

HF600

High-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 600 bar (8,700 psi) / Max. Outlet: 600 bar (8,700 psi) / Cv 7.0

Product Overview HF600

The HF600 is a piston-sensed high-flow pressure regulator for gas applications. It features a balanced main valve as standard for up to 600 bar (8,700 psi) inlet pressure.

With a Cv of 7.0, the HF600 is perfect for applications where both high-flow and high pressure are required.

HF600 Features

APPLICATIONS: • Hydrogen Compression Systems • Hydrogen Storage • Hydrogen Distribution — Tube Trailers, MEGCs, MCPs

FEATURES: • Balanced main valve design • Piston sensing element • High flow coefficient

HF600 Specifications

Maximum Rated Inlet Pressure: 600 bar (8,700 psi)
Outlet Ranges: Up to 600 bar (8,700 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 18kg (39.7lbs)
