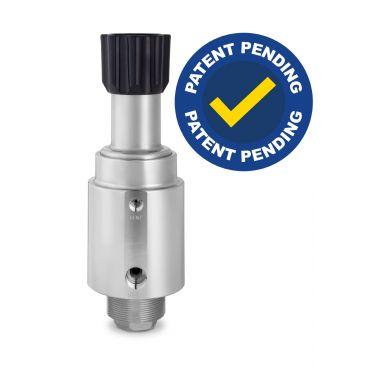

DF1034
Dual-Flow Pressure Regulator: Liquid / Piston / Self-Venting / Max. Inlet: 1,380 bar (20,000 psi) / Max. Outlet: 1,380 bar (20,000 psi) / Cv 1.5 (primary) & 0.06 (secondary)
Product Overview DF1034
The DF1034 is a piston-sensed pressure regulator with an incorporated cascaded main valve feature for quick fill of umbilical lines and high pressure water glycol applications up to 1,380 bar (20,000 psi).
Its dual-flow main valve offers a high flow via its primary main valve with a high Cv of 1.5, and the ability to fine tune the control pressure via its secondary main valve with a lower Cv of 0.06.
The DF1034’s design has been considered to decrease pressurization time and, to ultimately, extend the life
cycle of the regulator.
DF1034 Features
| APPLICATIONS: • Quick fill umbilical lines • High pressure water glycol applications | FEATURES: • Cascaded dual-flow design • Balanced main valve • Piston sensing element • Easy access to seat cartridge for simplified servicing |
DF1034 Specifications
Maximum Rated Inlet Pressure: 1,380 bar (20,000 psi)
Outlet Ranges: Up to 1,380 bar (20,000 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 8.7kg (19.2lbs)
