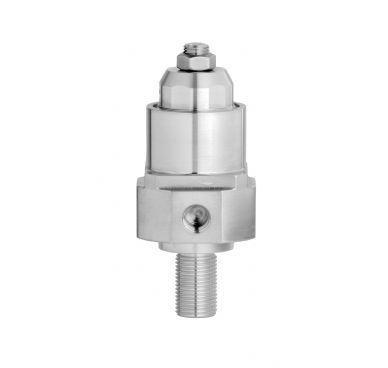

LW351

Pressure Regulator for Drone & Lightweight Hydrogen Fuel Cell Applications with Direct Cylinder Connection: Gas / Piston / Non-Venting / Max. Inlet: 350 bar (5,075 psi) / Max. Outlet: 3 bar (45 psi) / Cv 0.06

Product Overview LW351

The LW351 is a piston-sensed pressure regulator, designed specifically for drone and lightweight hydrogen fuel cell applications.

With a low 0.15% decaying pressure effect, it offers accurate control in a single-stage pressure reduction. When weight is a critical consideration for your application, the LW351 is the perfect solution. It's compact size and lightweight design (down to 0.2kg) fits the bill, and additionally offers direct mounting to the Hydrogen cylinder.

LW351 Features

APPLICATIONS: • Hydrogen powered UAV Drones • Hydrogen powered scooters, bicycles & light vehicles • Hydrogen fuel cell portable and stationary power • Plus other lightweight hydrogen fuel cell applications

FEATURES: • Compact and lightweight design (down to 200g) • 0.15% decaying pressure effect • Piston sensor - ideal for challenging conditions • Direct mounting to the cylinde

LW351 Specifications

Maximum Rated Inlet Pressure: 350 bar (5,075 psi)
Outlet Ranges: Up to 3 bar (45 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 0.2 kg (0.44 lbs)
