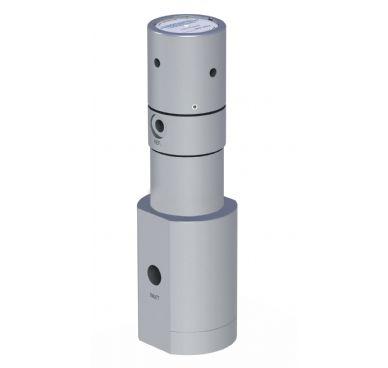

SS-BP400

Medium-Flow Back Pressure Regulator for Subsea Applications: Gas / Piston / Non-Venting / Max. Inlet: 400 bar (5,800 psi) / Max. Outlet: 10 bar (145 psi) / Cv 2.0
Product Overview SS-BP400
INTRODUCING THE SS-BP400...
The SS-BP400 is a medium-flow subsea back pressure regulator with 1:1 tracking ratio to reference subsea pressure. Its reference port is located in an adjustable collar beneath the locking cap, enabling users to manually rotate through 360° to suit their application.
Capable of operating at depths of up to 3,000 meters (10,000 ft) and with a balanced main valve as standard it provides stable control under varying inlet pressures and can handle higher flow rates.
SS-BP400 Features
Can operate at depths up to 3,000 metres (10,000ft)
Piston sensing element for use in challenging conditions
Balanced design for improved control across the pressure range
Optional ROV handwheel or subsea multi-turn electric actuator
SS-BP400 Specifications
Maximum Rated Inlet Pressure: 400 bar (4,800 psi)
Outlet Ranges: Up to 10 bar (145 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 9kg (19.8lbs)
