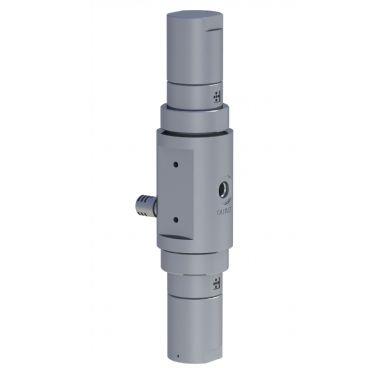

SS-COM301

Combination Pressure Regulator for Subsea Applications: Gas / Piston / Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 50 bar (725 psi) / Cv 0.5

Product Overview SS-COM301

INTRODUCING THE SS-COM301...
The SS-COM301 is a subsea combination piston-sensed regulator, incorporating our MF101 and BP301 regulators in one body.

It features a balanced main valve design as standard, but is also available in an unbalanced option. Its MP35N main valve spring has been carefully selected for its high strength and corrosion-resistant properties to suit sea water conditions.

SS-COM301 Features

• Designed for subsea operation
• Piston sensing element
• MP35N valve spring material with very high strength with excellent corrosion resistance
• Balanced design for improved control

SS-COM301 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 50 bar (725 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
