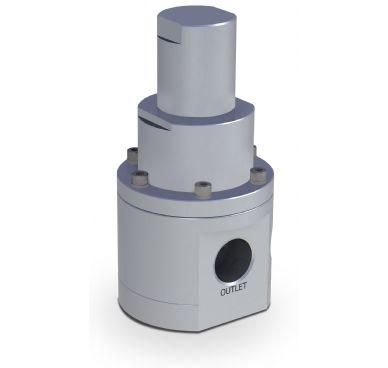

SS231

Pressure Regulator for Subsea Applications: Gas / Piston / Self-Venting / Max. Inlet: 230 bar (3,335 psi) / Max. Outlet: 35 bar (510 psi) / Cv 1.0

Product Overview SS231

INTRODUCING THE SS231...
The SS231 is a piston-sensed medium-flow subsea pressure regulator. With a balanced main valve as standard it provides stable control under varying inlet pressures.

Operating at depths of up to 3,000 meters (10,000ft), the SS231 uses either the external seawater pressure as a reference or works within a sealed chamber to remain completely unaffected by atmospheric conditions.

SS231 Features

Suitable for deep waters down to depths of up to 3,000m (10,000ft)
Anti-tamper locking cap prevents unwanted pressure adjustments
Very high strength MP35N spring offers excellent corrosion resistance
Remote control options available

SS231 Specifications

Maximum Rated Inlet Pressure: 230 bar (3,335 psi)
Outlet Ranges: Up to 35 bar (510 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
