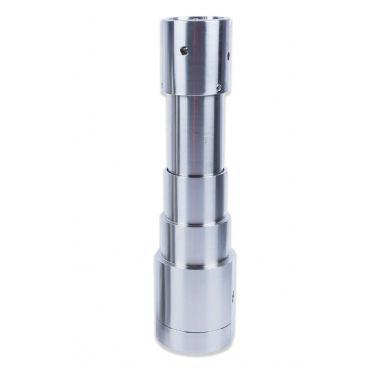

SS414

Pressure Regulator for Subsea Applications: Gas or Liquid / Piston / Non- or Self-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 250 bar (3,625 psi) / Cv 2.0 / Optional Remote Operation Via Electric Actuator
Product Overview SS414
INTRODUCING THE SS414...
The SS414 is a piston-sensed medium-flow subsea pressure regulator with ceramic seating for
water-based hydraulic oil applications and systems, or PEEK™ for gas applications. With a balanced
main valve as standard, it provides stable control under varying inlet pressures.
Operating at depths of up to 3,000m (10,000ft), the SS414 uses either the external seawater pressure as a reference or works within a sealed chamber to remain completely unaffected by atmospheric conditions.
In addition, our optional compact electric actuator enables remote operation for subsea applications.
SS414 Features
Suitable for deep waters down to depths of up to 3,000m (10,000ft)
Anti-tamper locking cap prevents unwanted pressure adjustments
Very high strength Elgiloy® spring offers excellent corrosion resistance
Remote control options available
SS414 Specifications
Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 250 bar (3,625 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
