SS690

SS690

API 17F Approved Pressure Regulator for Subsea Applications: Liquid / Piston / Non- or Self-Venting / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.1 / Optional Remote Operation Via Electric Actuator

Product Overview SS690

INTRODUCING THE SS690...

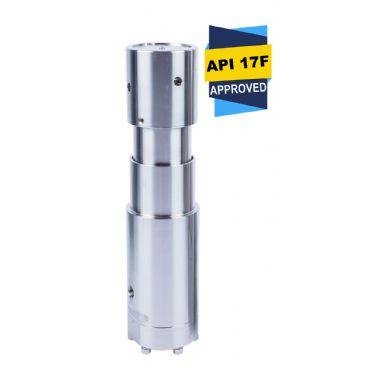

The SS690 is an API 17F approved piston-sensed low-flow subsea pressure regulator with ceramic seating for water-based hydraulic oil applications and systems. With the balanced main valve option it can provide stable control under varying inlet pressures and cope with higher flow rates.

Operating at depths of up to 3,000 metres (10,000ft), the SS690 uses either the external seawater pressure as a reference or works within a sealed chamber to remain completely unaffected by outside conditions.

In addition, our optional compact electric actuator enables remote operation for subsea applications.

SS690 Features

Suitable for deep waters down to depths of up to 3,000m (10,000ft)
API 17F Approval
Anti-tamper locking cap prevents unwanted pressure adjustments
Very high strength Elgiloy® spring offers excellent corrosion resistance
Optional remote operation via electric actuator

SS690 Specifications

Maximum Rated Inlet Pressure: 690 bar (10,000 psi)
Outlet Ranges: Up to 690 bar (10,000 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
