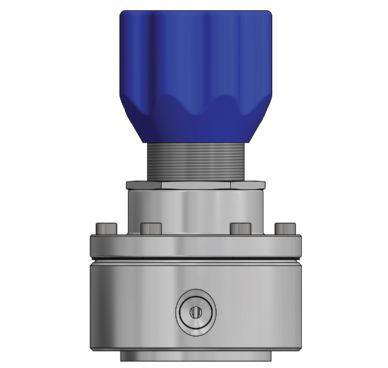

BP010

Back Pressure Regulator: Gas / Elastomeric Diaphragm / Max. Rating: 10 bar (145 psi) / Control Range: Up to 5 bar (75 psi) / Cv 0.1
Product Overview BP010
INTRODUCING THE BP010...
The BP010 is an elastomeric diaphragm-sensed back pressure regulator, offering sensitive control. Featuring a spring-loaded design, the BP010 offers a bolted bonnet for simplified servicing through its top access. In addition, its threaded bonnet comes as standard for optional panel mounting.
A sub-atmospheric version is also available which can be used to control a negative pressure upstream of the regulator - please ask for details.
BP010 Features
• Elastomeric diaphragm-sensed design
• Teflon-lined diaphragm
• Bolted bonnet
• 316SS threaded bonnet
BP010Specifications
Maximum Rated Inlet Pressure: 10 bar (145 psi)
Outlet Ranges: Up to 5 bar (75 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 1.0kg (2.1lbs)
