BP300

Back Pressure Regulator: Gas or Liquid / Diaphragm / Max. Rating: 35 bar (510 psi) / Control Range: 20 bar (300 psi) / Cv 0.1
Product Overview BP300
INTRODUCING THE BP300...

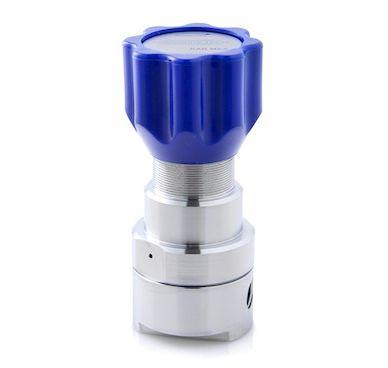

The BP300 is an Inconel® X750 diaphragm-sensed back pressure regulator.
Its compact and simple design makes it ideal for general purpose applications and for systems that do not require accurate control of upstream pressure.
BP300 Features
• Inconel® X750 diaphragm
• Suitable for gas or liquid applications
• Low flow coefficient
• Lightweight and compact design
BP300 Applications
• Gas and liquid analyzer systems
• Blanketing applications
• Laboratories and research labs
BP300 Specifications
Maximum Rated Inlet Pressure: 35 bar (510 psi)
Outlet Ranges: Up to 20 bar (300 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 0.9kg (2lbs)
