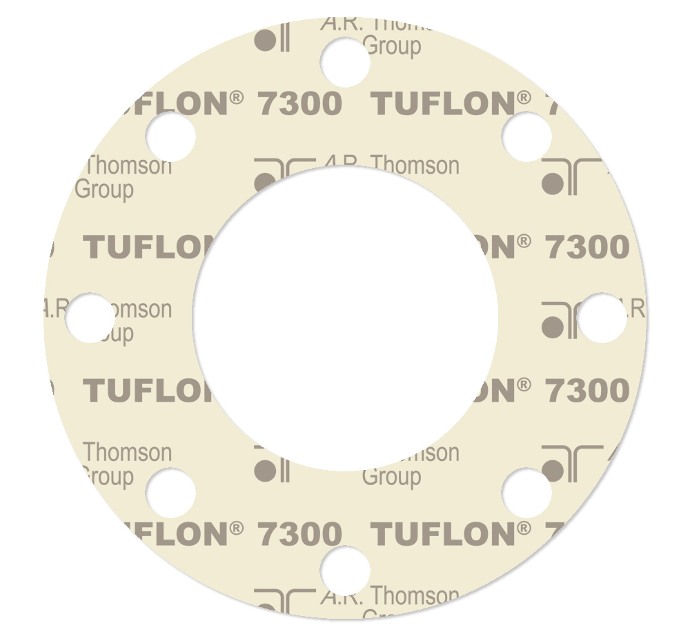

Tuflon 7300 – Teflon / Barium Gasket
TUFLON® 7300 is a barium sulfate filled PTFE gasket material specifically formulated for service in strong caustics, moderate acids, chlorine, hydrocarbons and cryogenics. It is highly resistant to creep relaxation and has outstanding sealability characteristics. This material can be supplied with FDA compliance.
FEATURES / BENEFITS
- Excellent cost/use ratio.
- Superior chemical resistance.
- Excellent sealability properties.
- Easy to cut, handle, and remove from flange faces - durable
and flexible material. - Patented welding process for unlimited gasket size.
TYPICAL APPLICATIONS
- Pulp and Paper
- Food processing
- Pharmaceutical
- Chemical process
- Brewing and distilling
- General industrial use
SPECIFICATIONS
Construction: Barium Sulfate Filled PTFE
Colour: Blue with Black branding.
pH Range: 0–14 pH
Temperatures: -364°F to +500°F (-220°C to +260°C)
Pressure: Max: 800 PSI (55 bar)
Dimensions: Available in 1/16” and 1/8” thickness. 60” x 60” sheet.
*80” x 80” available upon request.
See datasheet for additional technical data.
Note: Specifications based on ANSI RF flanges at our preferred torque. When approaching maximum pressure or continuous operating temperature, consult A.R. Thomson.
Teflon™ is a registered trademark of The Chemours Company.
Chemical compatibility is a general guide and should be for your
intended application. We recommend independent evaluation
and suitability for media conditions.
