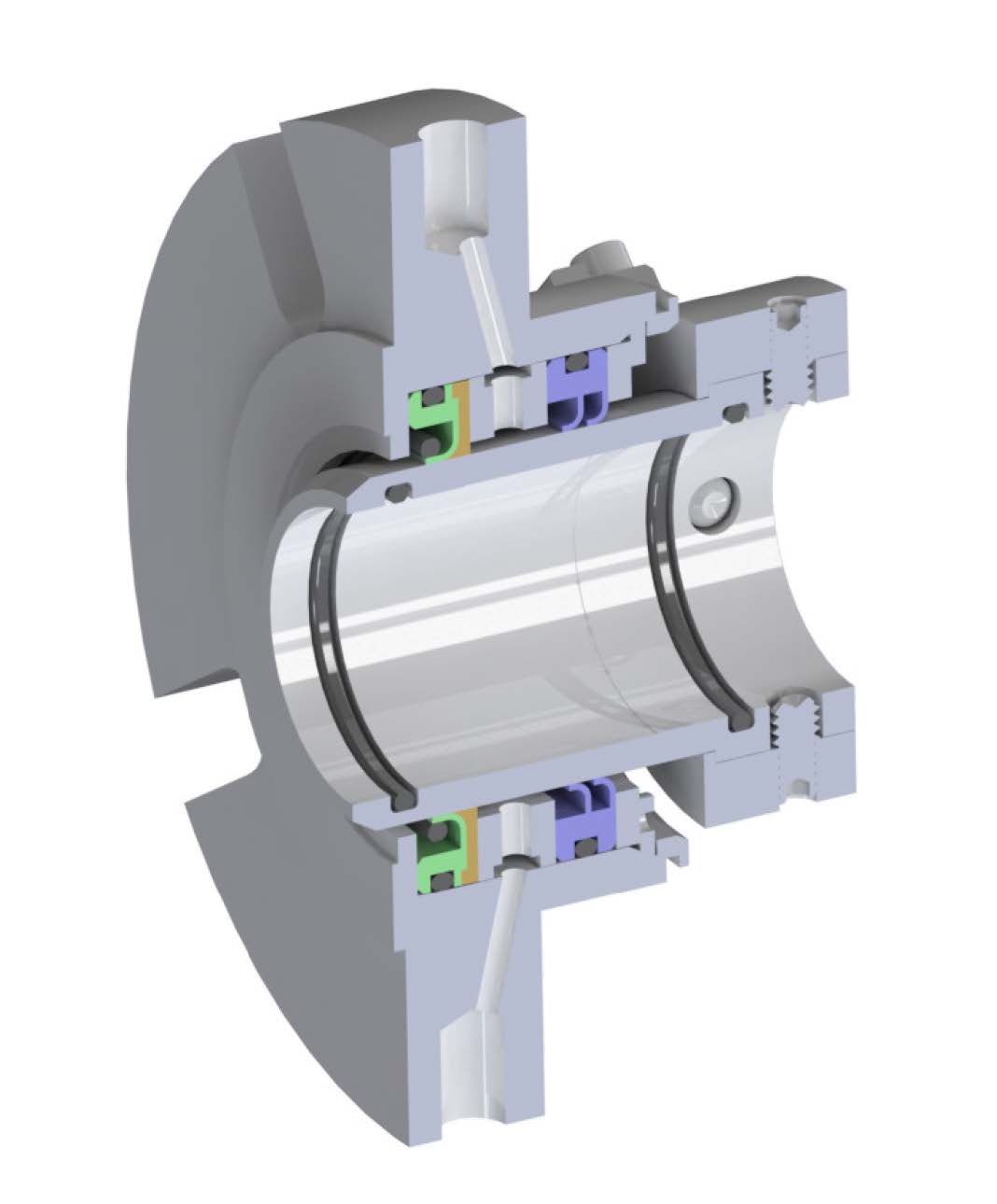

TAC-MLC3 Mechanical Seal

Multi-lip cartridge seal designed for
challenging applications.

Features

• Non-clogging, proprietary engineered lip seals resist
  shearing and provide a reliable seal over the integrated
  hard-coated shaft sleeve.
• Anti-rotation rings in the lip seals provide exceptional
  static sealing ability.
• Energized O-ring maintains a seal and prevents leakage
  with viscosity changes in the process.
• Proprietary lip seal material, PTFE-ML, is not only suited
  for aggressive chemicals and viscous abrasives, but also
  complies with GMP, FDA, and EU standards.
• Easy to install cartridge design for quick and simple fitups.
• Field repairs are simplified with readily-available spare
  parts kits.

Applications

• Viscous substances like syrups, tars, oils,
  resins, and glues.
• Applications where regular mechanical
  seals struggle.
• Situations where simple lip seal designs
  have traditionally been used.


Specifications

Up to 25.4 m/s (5000 fpm)
-73.3°C (-100°F) to 232.2°C (450°F)
316SS* Other materials available upon request.
Lip Seals: PTFE-ML proprietary compound
O-Rings: FKM standard
All operating range information is dependent on media,
materials of construction, and support systems used.
Please contact A.R. Thomson mechanical seal services
department for more information.
